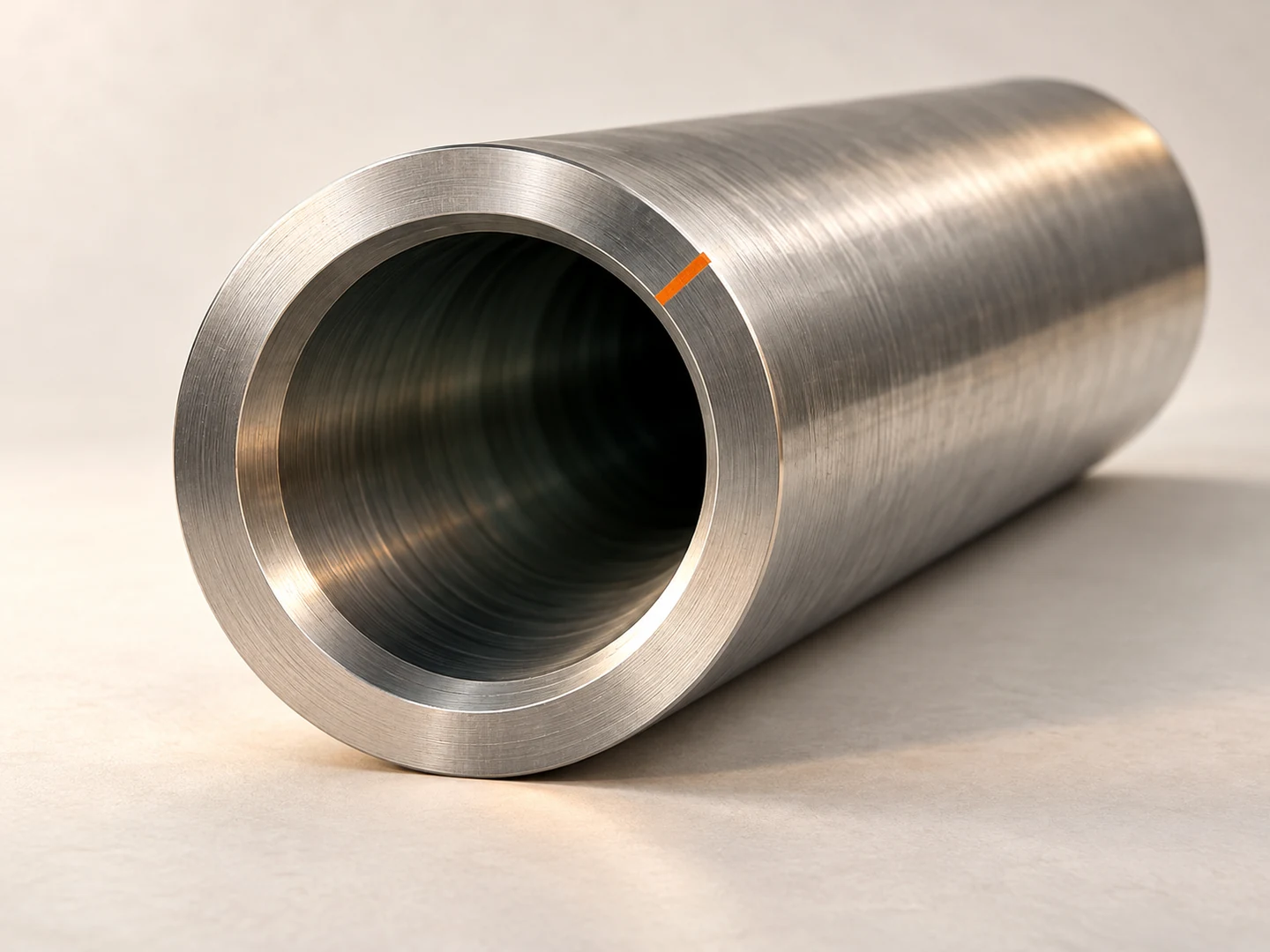

Original concept illustration of a machined inspection bore, with an orange index on its rim

An inspection image tells you what happened. Position tells you where. Explore how the two can travel together—then define the hardware your system needs.

Explore the signal path Go to selected hardware ↗

Original concept illustration.
Not Sensoray hardware or an installation.

01 / APPLICATION STUDYIMAGE → POSITION → USB

Model 4023 / Embedded recording

Give the image
a place in the record.

A pipe inspection is one way to explain the relationship: analog-HD video and encoder information meet at the recorder.

Step through the signal path. This is an explanatory concept, not a live feed, product drawing or installation.

Evaluate Model 4023 ↓
Field → recordMODEL 4023
Illustrative application studyA pipe inspection image, linked to positionAn original illustrative cutaway shows a camera facing into a pipe. Separate video and symbolic encoder inputs feed Model 4023. Position can be overlaid on the image before recording to USB storage. This is not a live feed, product drawing or installation.

Illustrative application study

Analog-HD camera signal

Model 4023+ Symbolic encoder input
Illustrative video frame
Position overlay

USB recording

Analog-HD video enters Model 4023. The illustration shows a pipe inspection application, not a live camera feed.

Read the Model 4023 specification ↗
02 / SELECTED HARDWARETHREE DISTINCT SYSTEM ROLES

Follow the signal.
Choose the role.

Three selected models, each for a different job. Compare their constraints and keep the candidates that belong in your engineering conversation.

01 / RECORD

MODEL 4023

A record with context.

Embedded analog-HD DVR

Bring video and position into a USB recording path.

Analog HDImage input
4023+ encoder position
USBExternal storage
INPUTAnalog HD + SD
DESTINATIONUSB storage
Technical notes
Input
AHD / TVI / CVI and SD; up to 1080p30
Position
Two incremental encoder interfaces; position overlay
Record / display
H.264 / MP4 to USB; DVI or composite display output

External USB storage is required. Confirm signal format, encoder characteristics and storage requirements with Sensoray.

Official specifications ↗

02 / STREAM

MODEL 2467

One input.
Network destinations.

HD-SDI IP video server

Move compressed HD-SDI video onto an Ethernet network.

HD-SDI INPUT2467Encode → Ethernet
01 Stream02 Stream

Two output streams from one input
for some resolutions.

INPUTHD-SDI
DESTINATION100BaseTX Ethernet
Technical notes
Input
HD-SDI; up to 1920 × 1080p30
Encoding
H.264 / MJPEG; two streams for some resolutions
Network
100BaseTX Ethernet

Check the supported resolution / stream combination. Active cooling may be required within the stated −20–70°C operating range.

Official specifications ↗

03 / MEASURE

MODEL 826

The physical system.
At the host.

Multifunction analog/digital I/O

Bring analog signals, digital I/O and counters into a PCIe host.

16Differential analog inputs
08Analog outputs
48Digital I/O
0632-bit counters

PCI EXPRESS x1 HOST SYSTEM

INPUTAnalog / digital / counters
DESTINATIONPCI Express x1
Technical notes
Analog
16 differential inputs and 8 outputs, 16-bit
Digital / counters
48 digital I/O; six 32-bit counters
Nominal supply
+12 V: 350 mA; +3.3 V: 450 mA, with no external loads

Confirm host, driver and application requirements. Power figures exclude external loads and are not a universal system power limit.

Official specifications ↗

Your brief selection

No models selected. You can also prepare a custom application brief.

Continue to project brief ↗
03 / ENGINEERING CONSTRAINTSCHECK BEFORE INTEGRATION

The details that
shape the system.

Different system roles—not interchangeable replacements. This is a limited concept selection, not the complete Sensoray range or a compatibility assessment.

MEASURE

Model 826

Signal / input
Analog / digital / counters
Output / host
PCI Express x1
Resolution
16-bit analog I/O
Supply / power
+12 V / +3.3 V rails
Operating range
0–70°C

Nominal supply: +12 V 350 mA / +3.3 V 450 mA, no external loads.

Specifications & documentation ↗Select / review 826 ↑

Product facts paraphrased from the linked official specifications, checked 30 October 2026. Reconfirm current documentation and application suitability with Sensoray.
